ACTIVE 207

Burglar-Alarm-Active-207

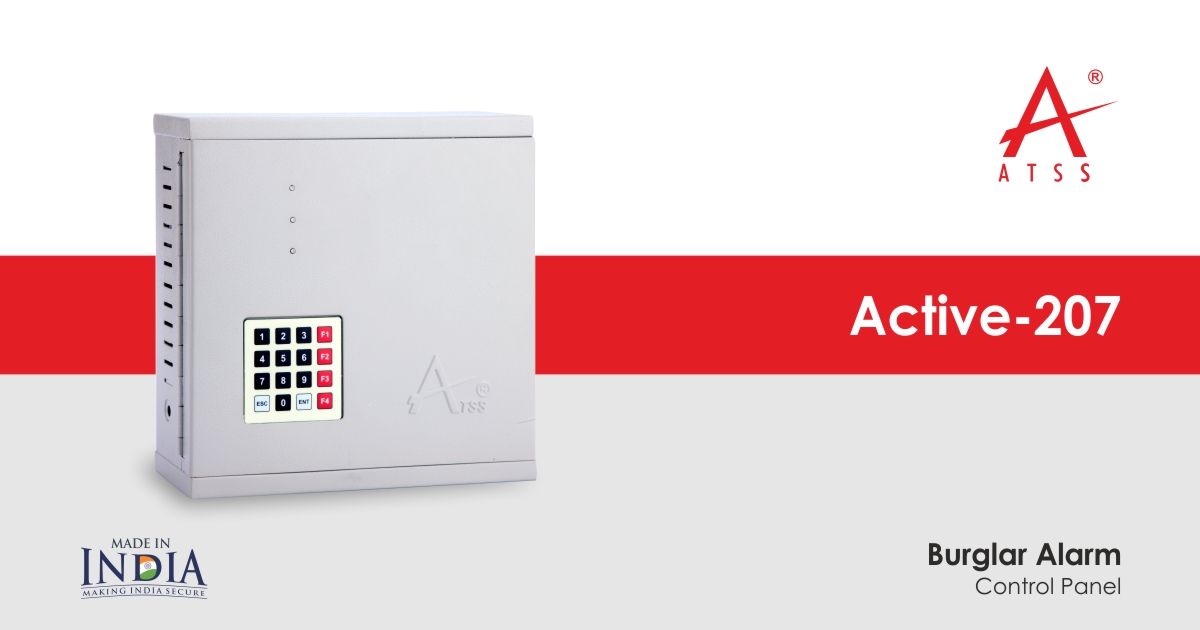

Active-207 Two Zones with Programmable Soft Touch Key-Alarm System

0-240 Sec Delay Time Setting

Daily Alert

Arm/Disarm Through Password

Changeable User Password

Auto Arming Provision For Zones

24 Hrs Panic/Tamper Zone

Immediate And Time Delay Zones Available

Individual Zone Password Option

Instant Siren Alert For Zone Open

LED Indicators For Individual Zone Status

Two Siren With Tamper Provision

Modified Siren Out Timing For Short, Long & Infinite

Siren Disconnect Sensing

Built In Battery Backup Provision

Low Battery/Reverse Battery Indicators

Resettable Fuse

Control Panel Door Tamper

Micro-Controller Based System

Solution

The ATSS Hard Wired Burglar Alarm System – Active 207 Consists of 2 Zones,1 Panic Zone , 2 Siren With Tamper Provisions, Control Panel Tamper. Activation & Deactivation of the system is done through Keypad.

POWER SUPPLY
Max Power Consumption 36 Watts
AC Main Supply 220-240 V AC /50 Hz
Transformer-Step down 230 V AC/50 Hz(Pri) | 18 V AC/2A(Sec)
BATTERY Battery is full recommended
Battery type Lead Acid Rechargeable Battery
Max Recharging Voltage-Input 13.7 V DC
Max Voltage/Current ratings 12 V DC/7 AH
ZONES
Zone Response Time < 500 Millisecond
Zone Loop Resistance < 1kilo Ohm For Normally Closed
Max Output Voltage/Current for Sensor Supply 12 V/500 MA
Max Output Voltage/Current for Siren Supply 12 V/750 MA
Max Length of Sensor Cable (multi core cable) 150 m (Depends on cable resistance)
Max Length of Siren Cable (multi core cable) 75 m (Depends on cable resistance)
RELAY-NORMALLY CLOSED
Max Output Voltage/Current AC 240 V/5 A
ENVIRONMENTAL
Environment Residential/ Commercial/ Light Industrial
Max Humidity 95% Non-Condensing
Operating Temperature 0° C To 45° C
Storage Temperature -20° C~+60° C
PHYSICAL
Colour Grey Coloured Metal Box
Control Panel Dimensions(mm) (H X W X L)=240*90*240
Weight 2.8kg
